Fender Telecaster American Ultra – 3D CAD Guitar Model

These 3D CAD files can be used to make your own Fender Telecaster American Ultra guitar model using CNC.

1:1 Scale for accurate cutting and assembly.

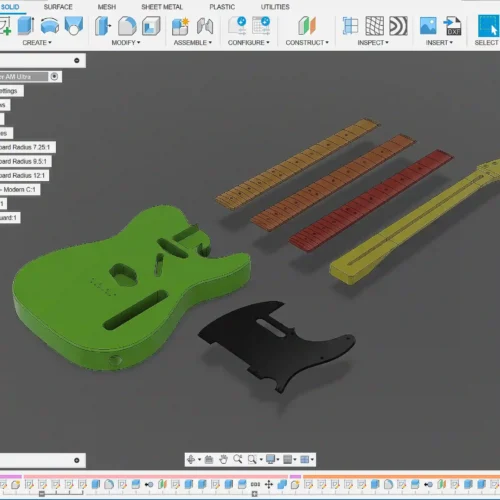

Designed in Autodesk Fusion360.

CAM toolpaths are not included

Features

• Organised work
• Accurate designs
• 2D sketches included (.F3D file)

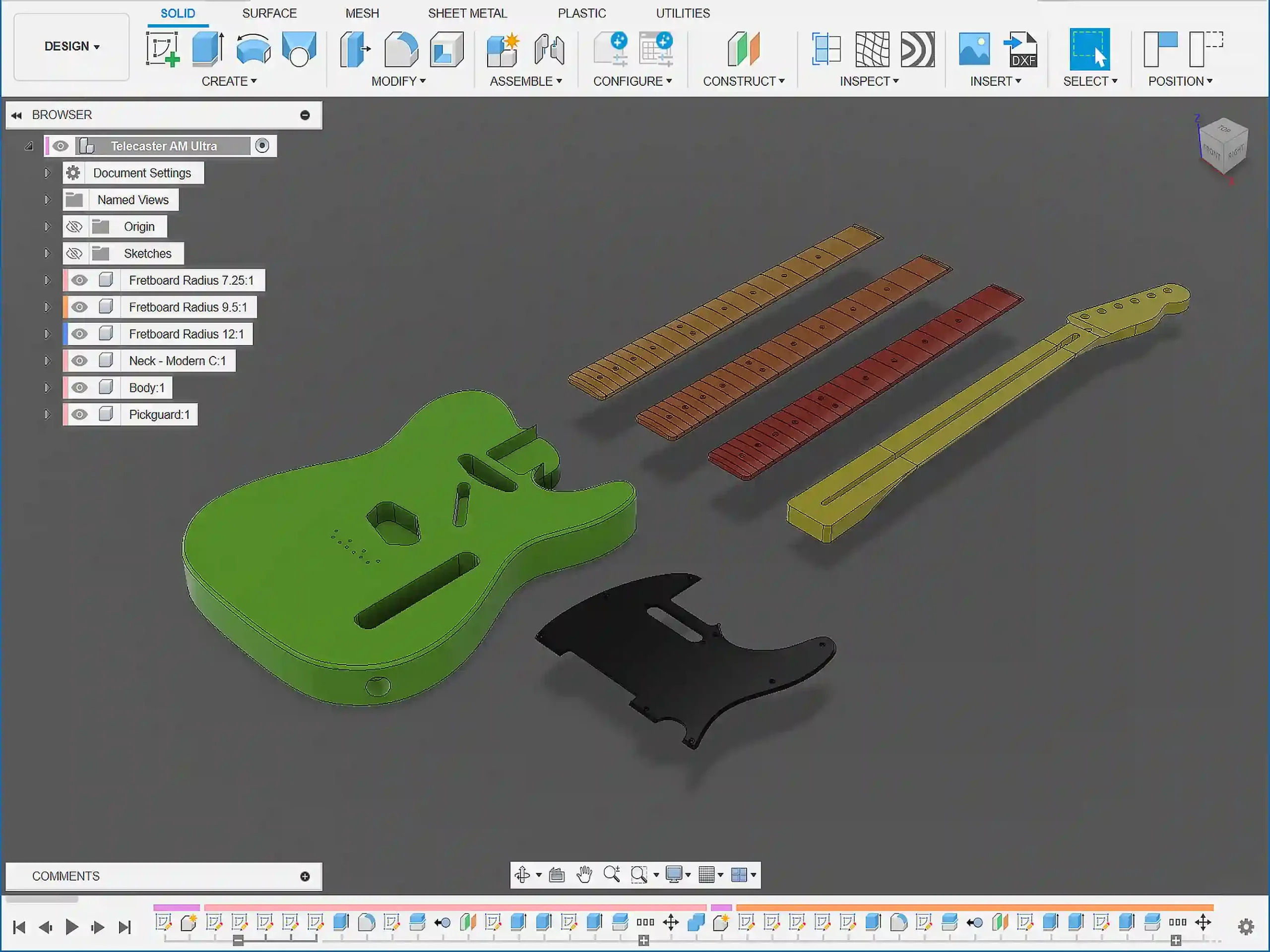

• Fusion360 fully editable project (.F3D file)

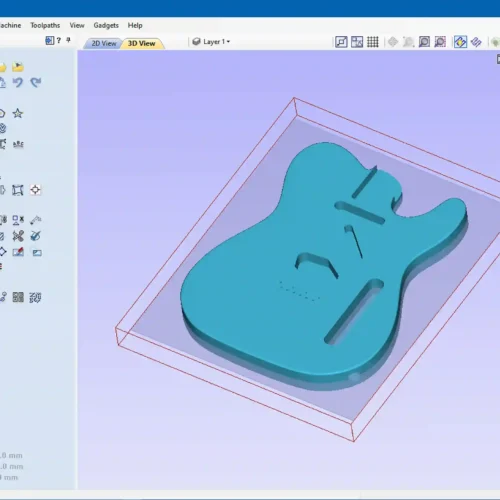

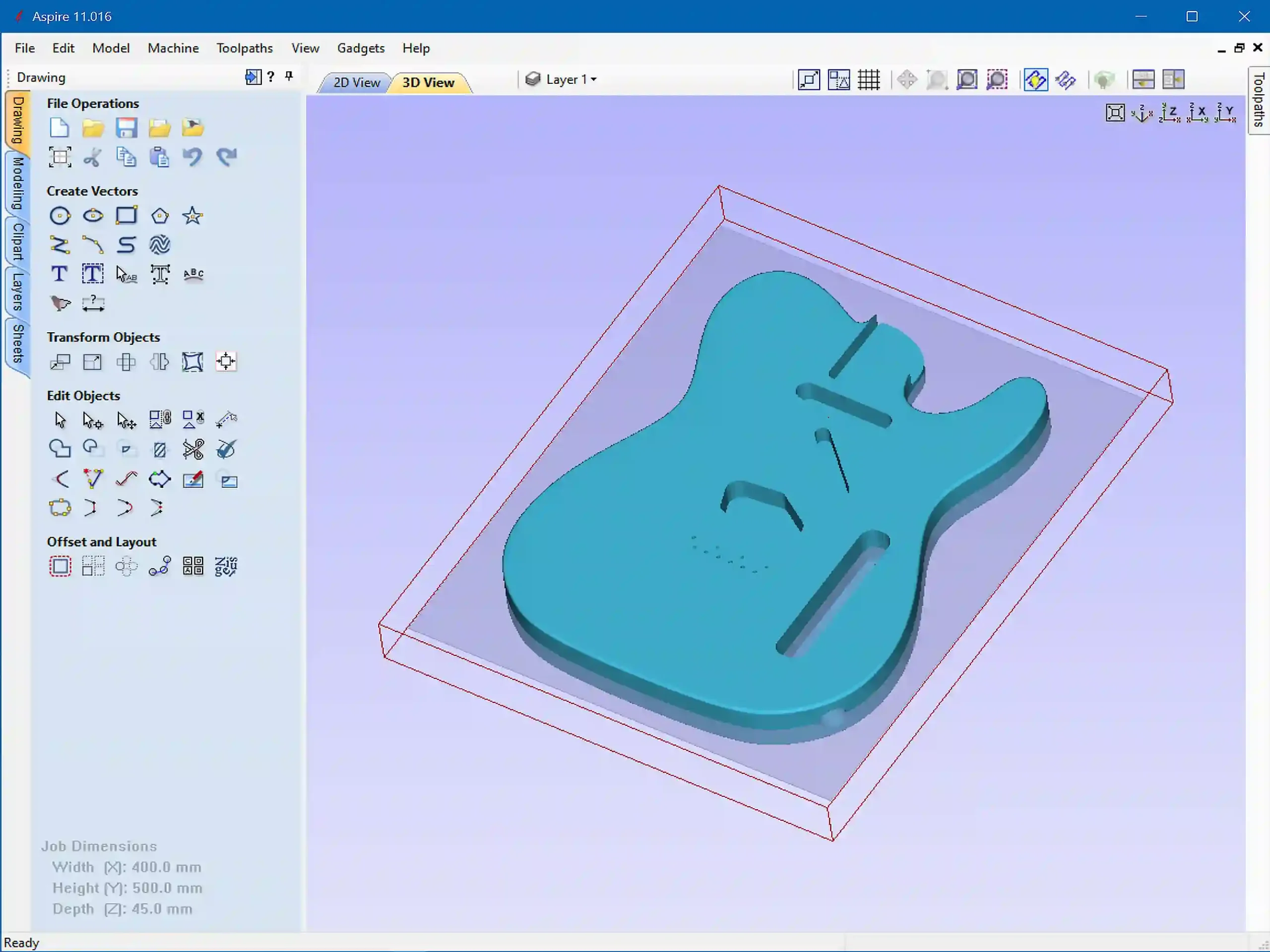

• STL files easily importable into various CAD/CAM and 3D printing software, including Aspire, VCarve and more
• STEP file compatible with most CAD/CAM software, including Solidworkds, for added flexibility

Files

• F3D (Fusion 360 native)
• STL (individual parts exported with binary encoding – CM, MM, and Inch)
• STEP
• SKP
• 3MF
• SMT

Specifications

• 25.5” scale
• Nut width 42mm (1.650″)
• 22 frets

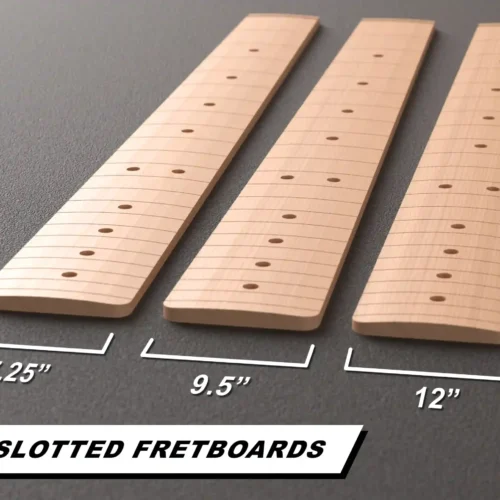

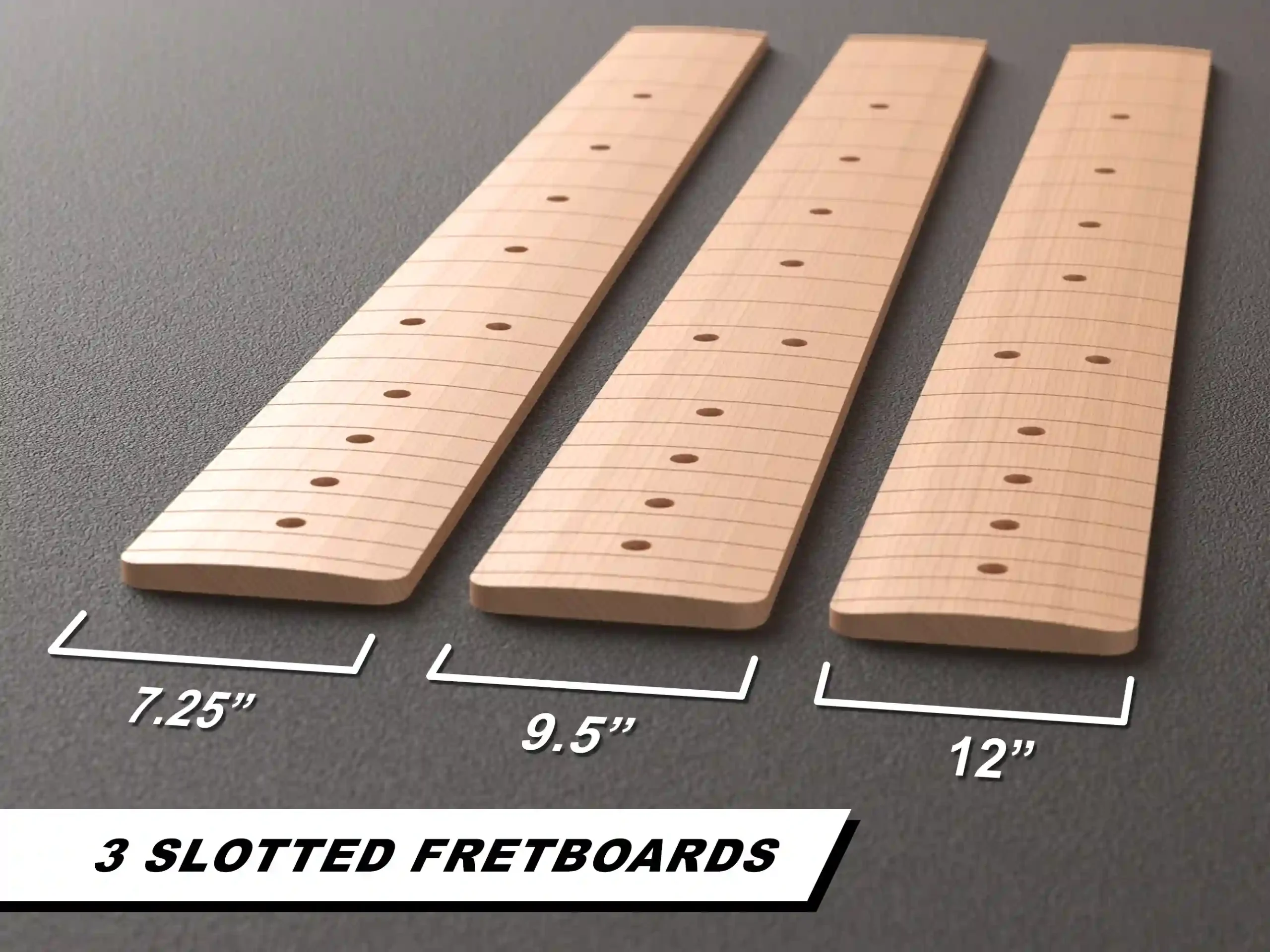

• 3 slotted fretboards (7.25” – 9.5” – 12”)

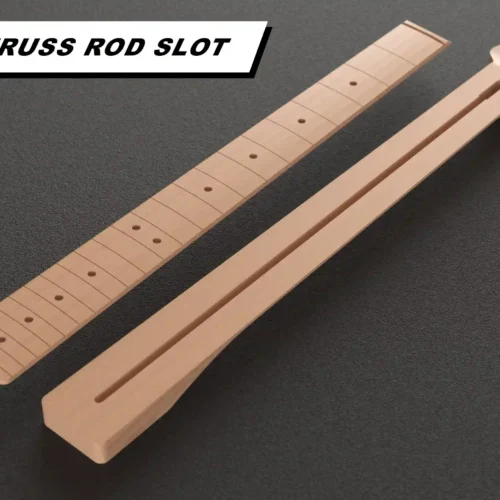

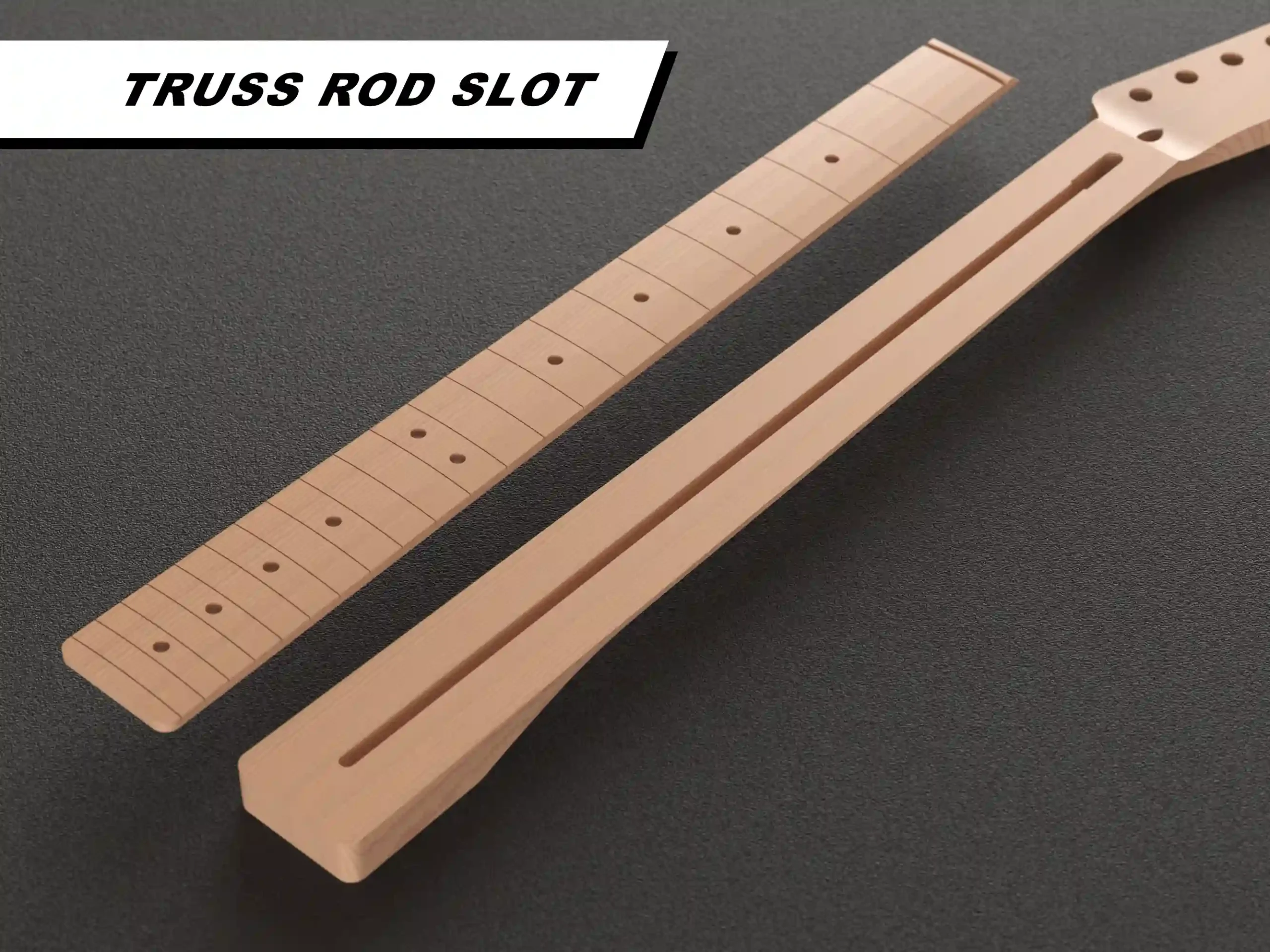

• Slot for a 440mm (17″ 1/4) two-way Truss Rod

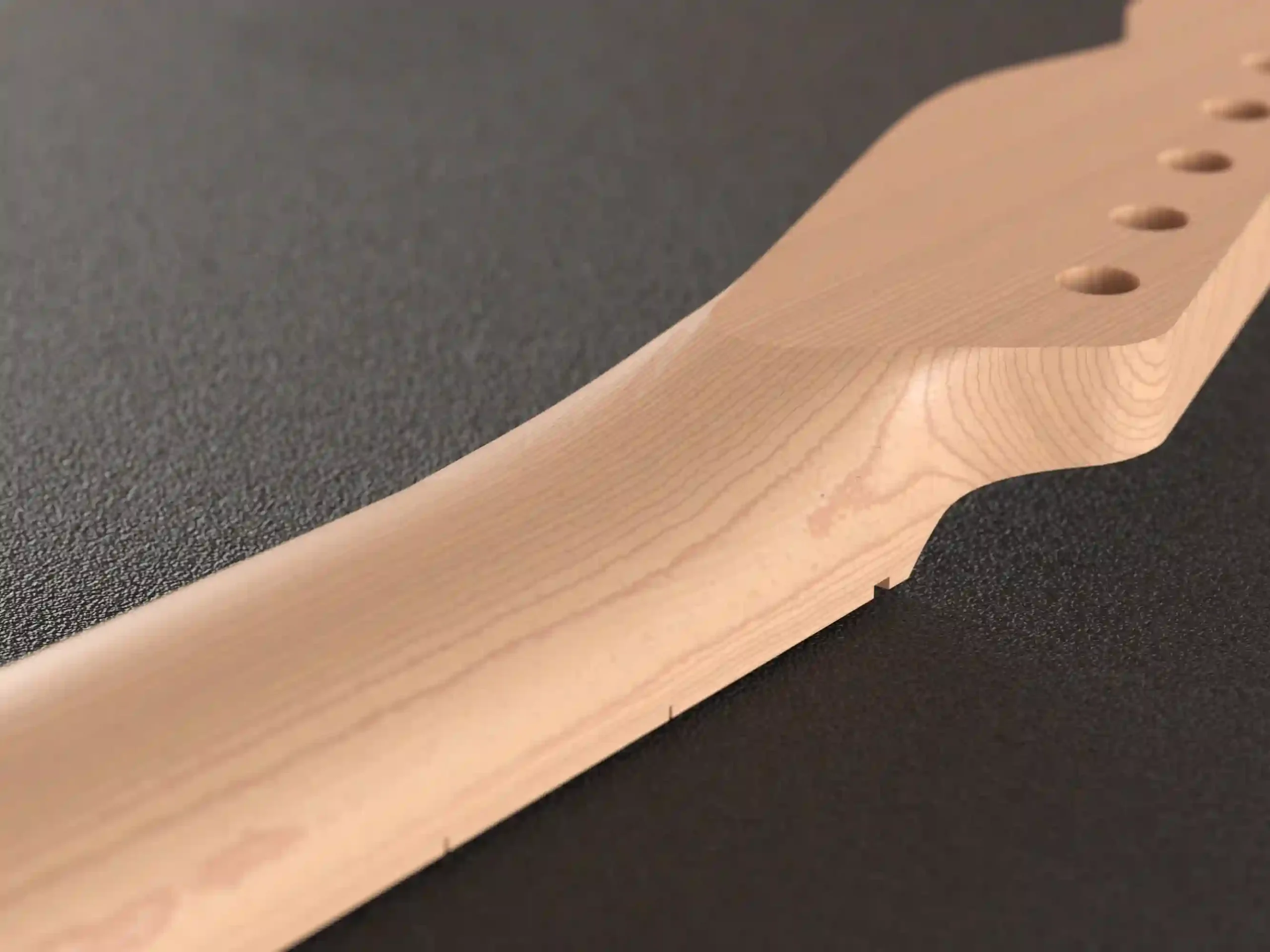

• Modern C neck shape

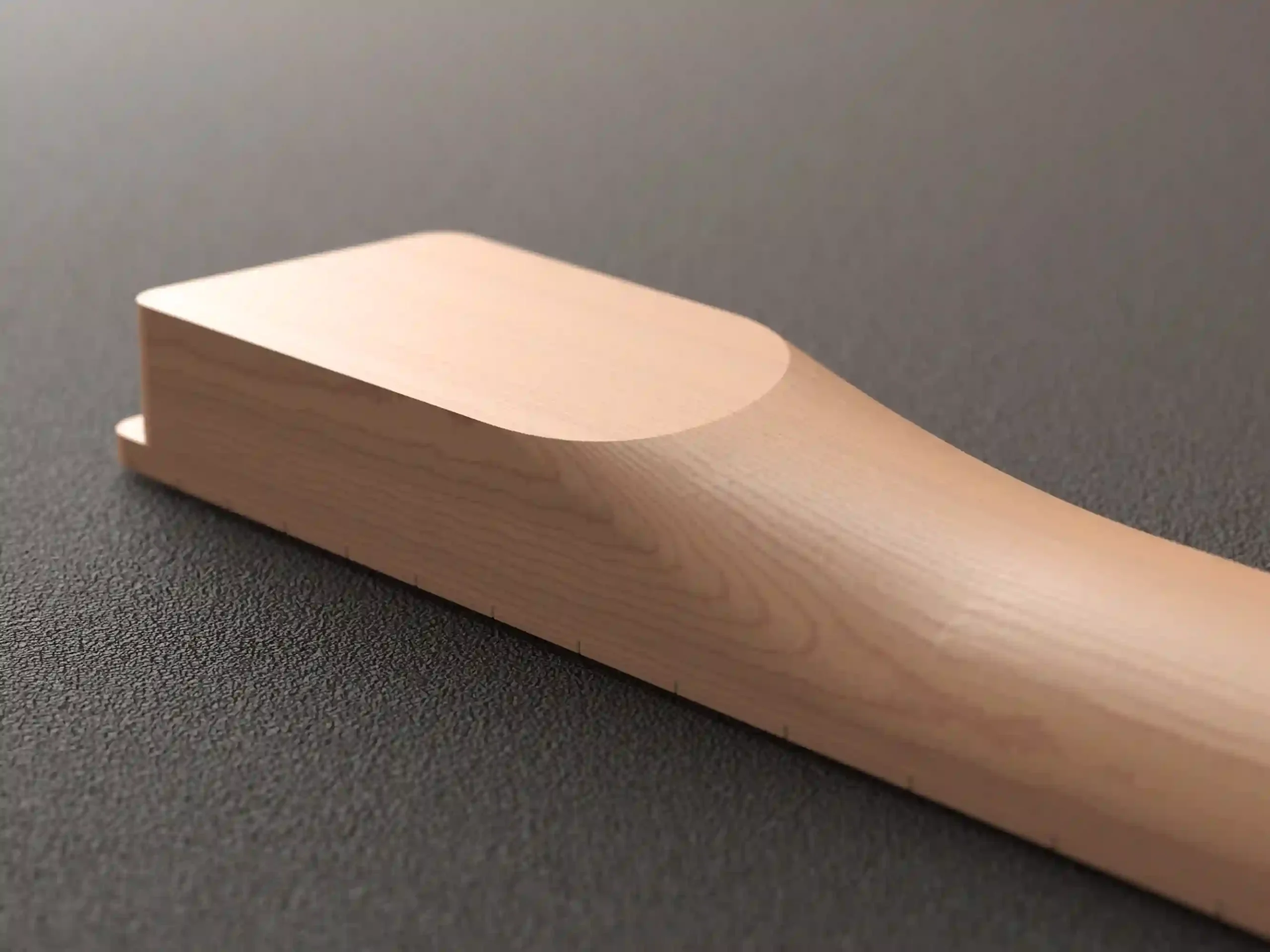

• T-Ultra tapered neck heel

Parts

• Fretboard 7.25”
• Fretboard 9.5”
• Fretboard 12”
• Fretboard blanks (7.25″ – 9.5″ – 12”)

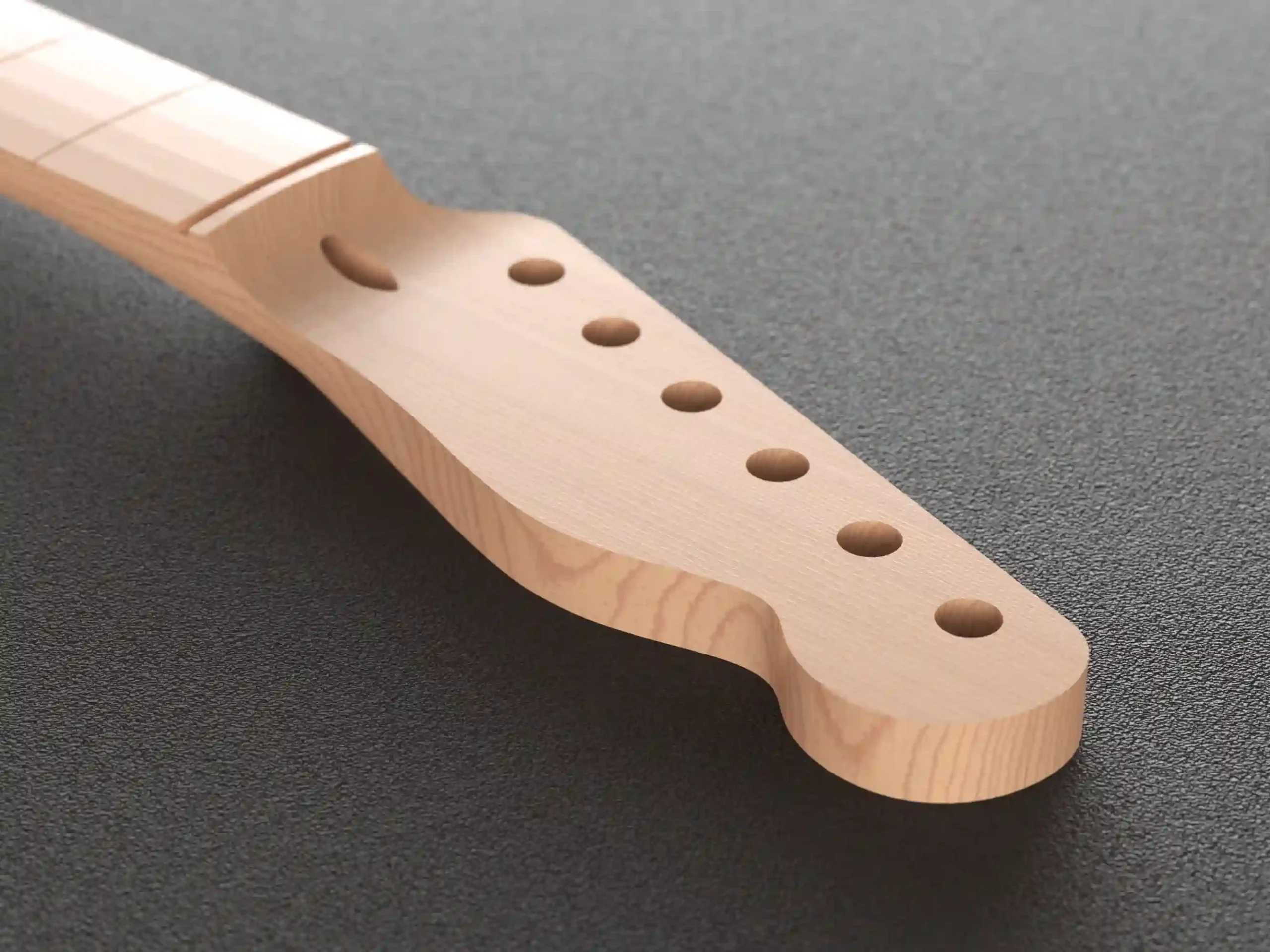

• Neck blank

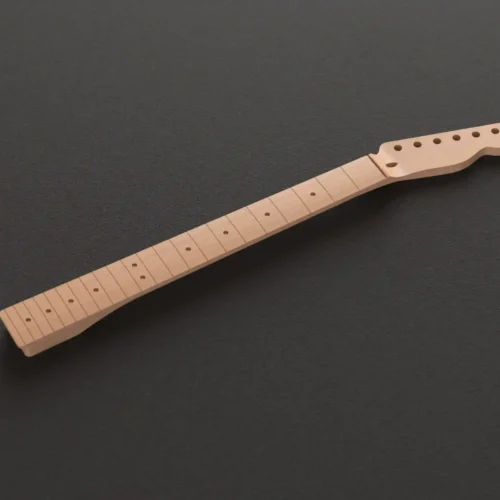

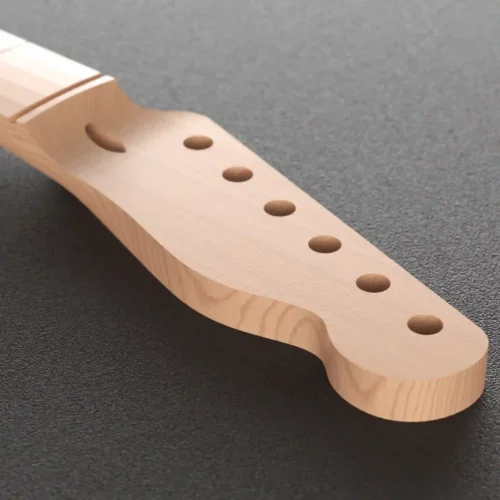

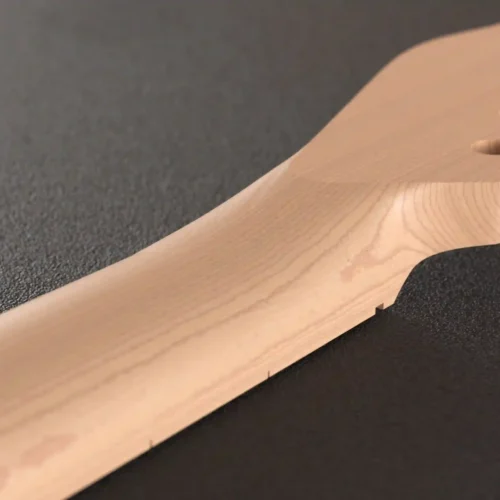

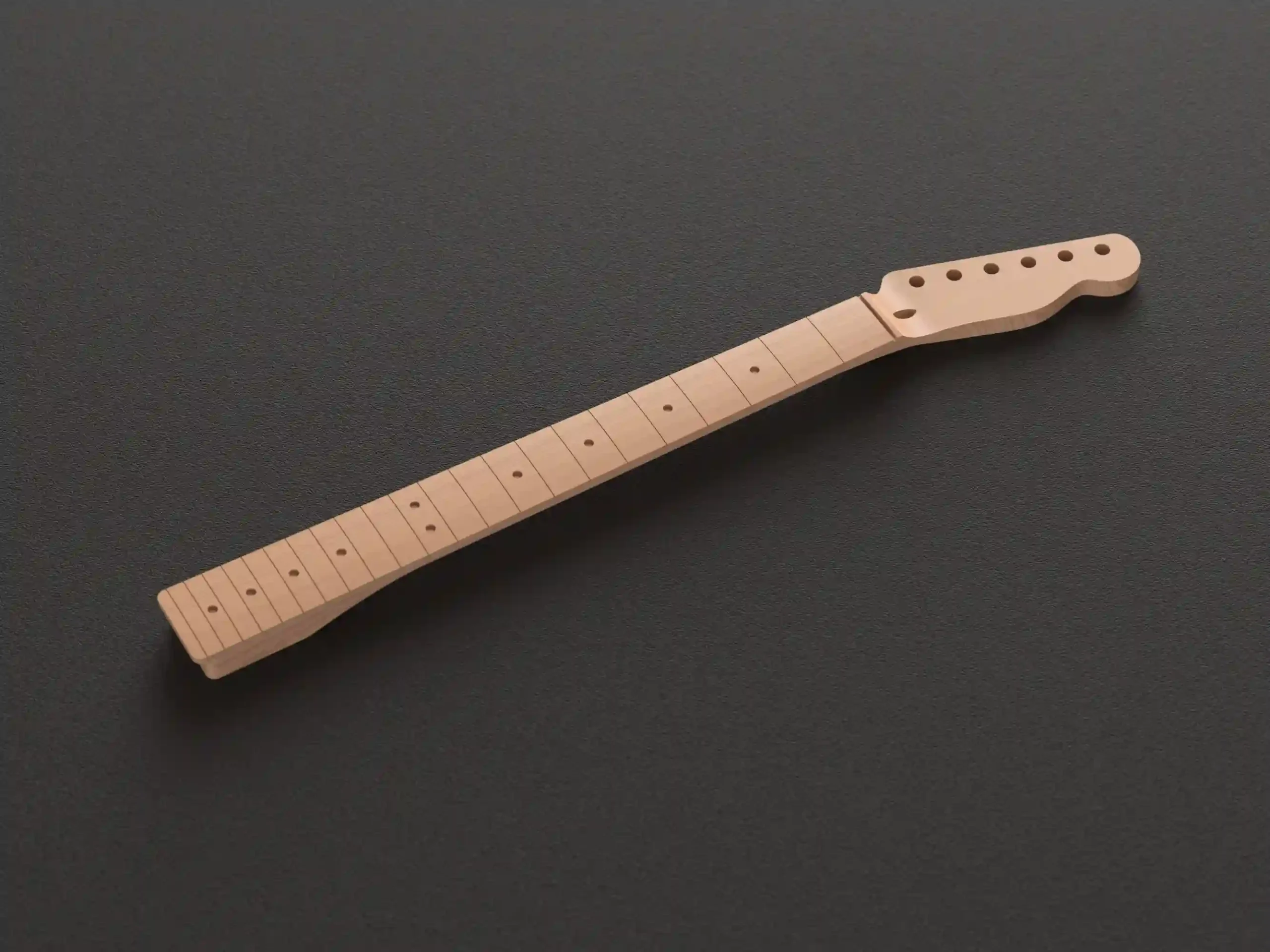

• Neck Modern C shape

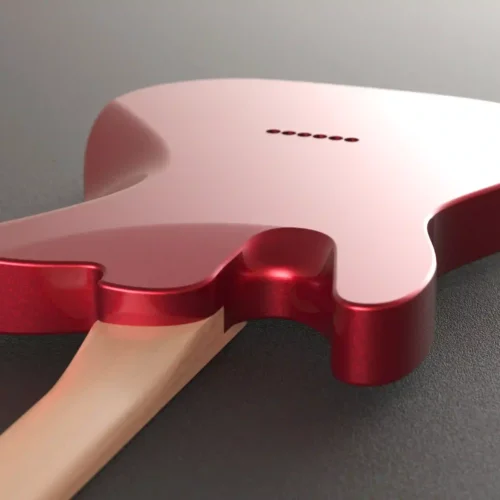

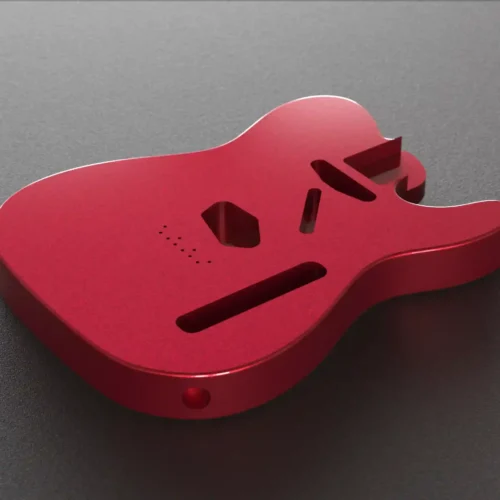

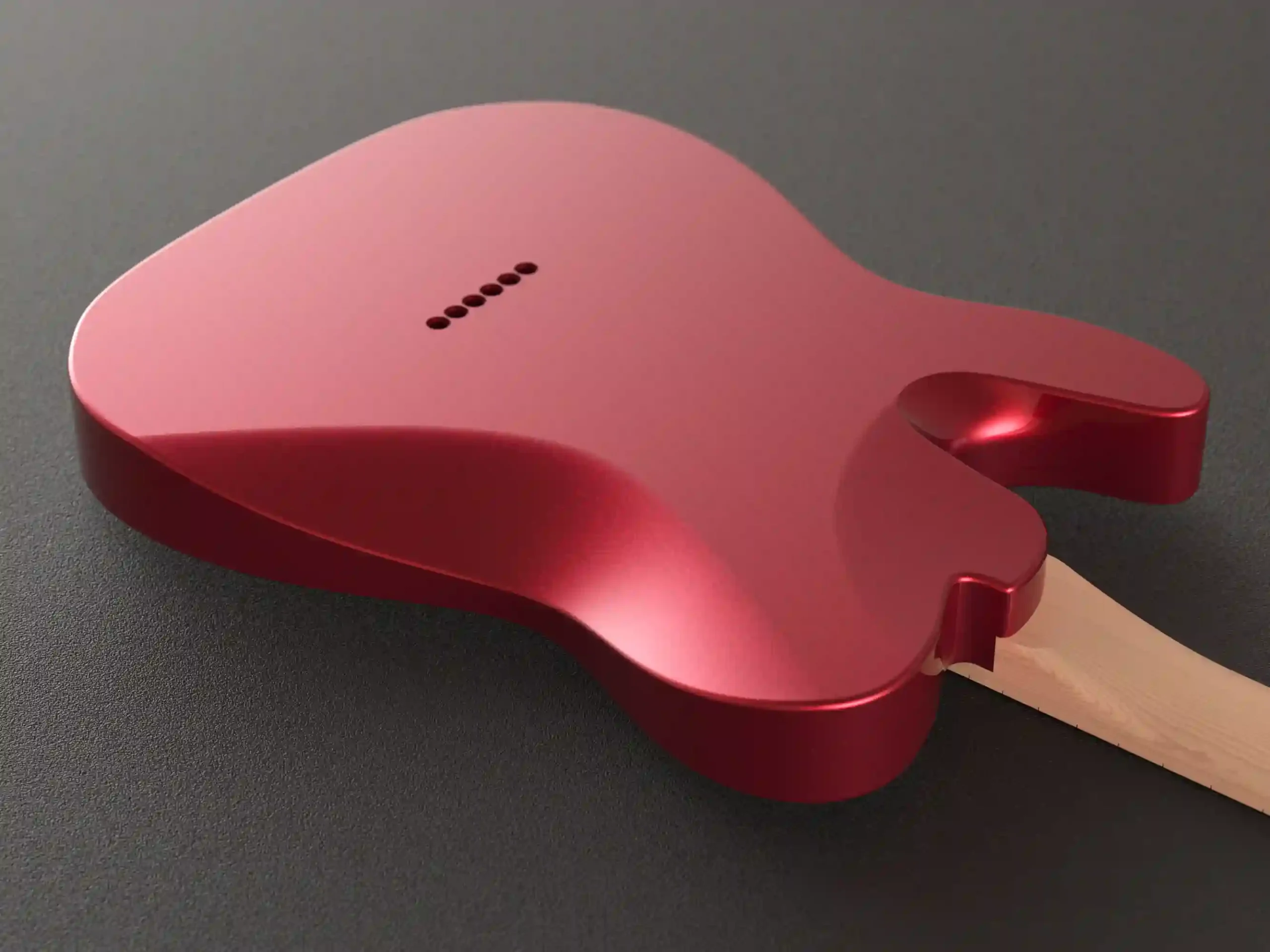

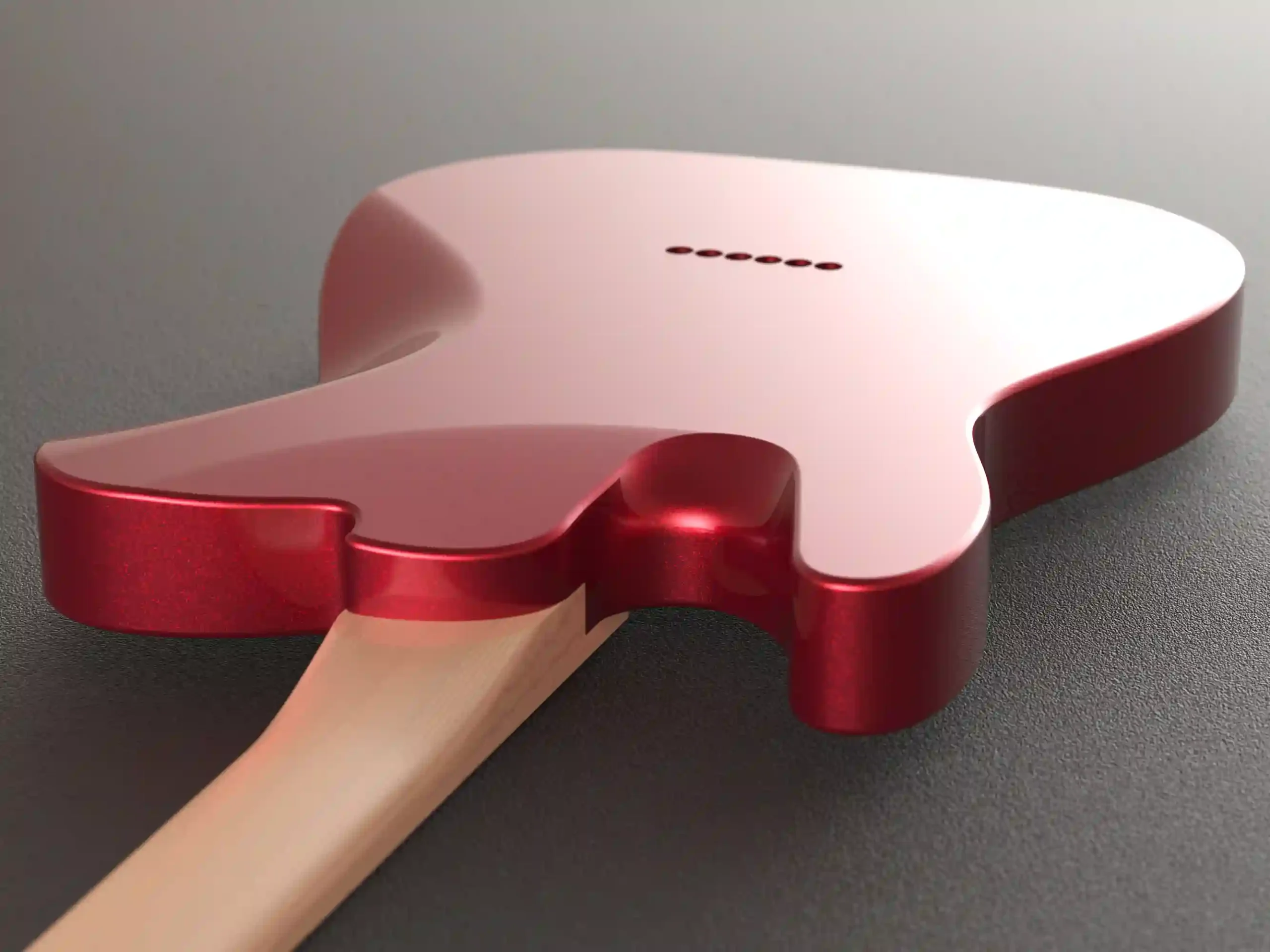

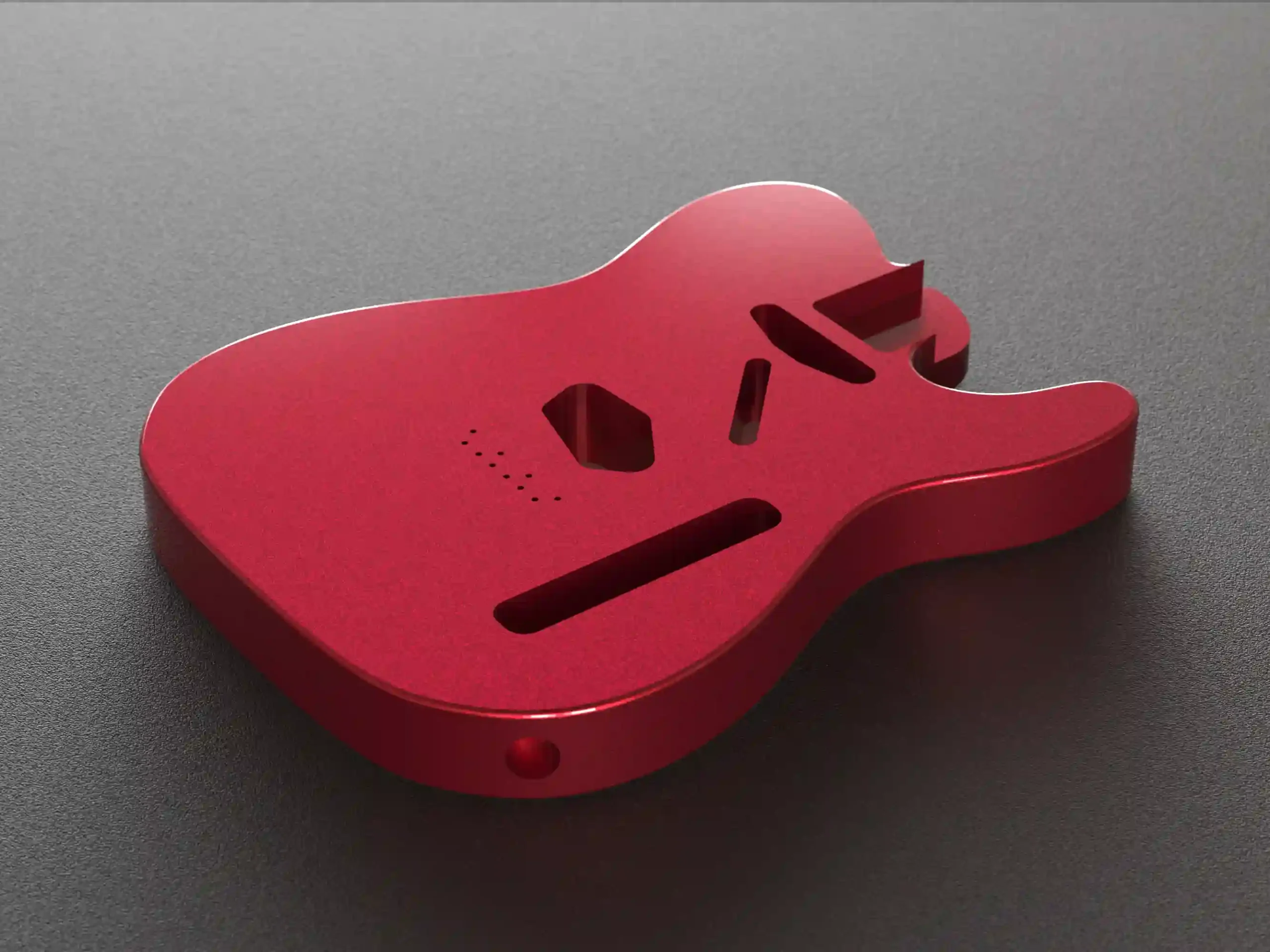

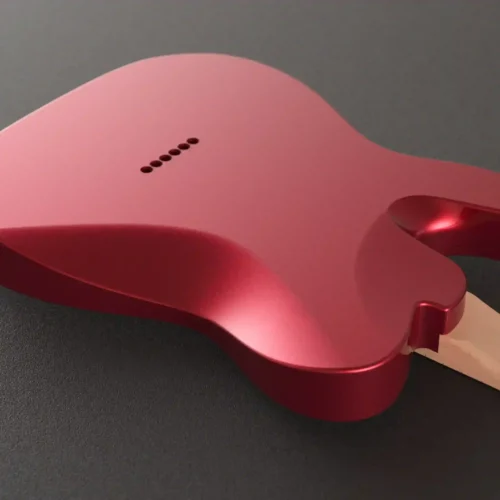

• Body
• Pickguard
